Outdoor IP67 Waterproof RJ45 PoE Surge Protector, 10kV, 10/100/1000Mbps LAN | 10/100/1000Mbps Ethernet, Powered or Data-Only Links, Aluminum Housing, IP Cameras, Switches, NVRs, PE Ground Required
US$19.98
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.valuareconsultores.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$19.98
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.valuareconsultores.com
Free 30-day returns Details
Product details
| Management number | 239737008 | Release Date | 2026/07/14 | List Price | US$19.98 | Model Number | 239737008 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

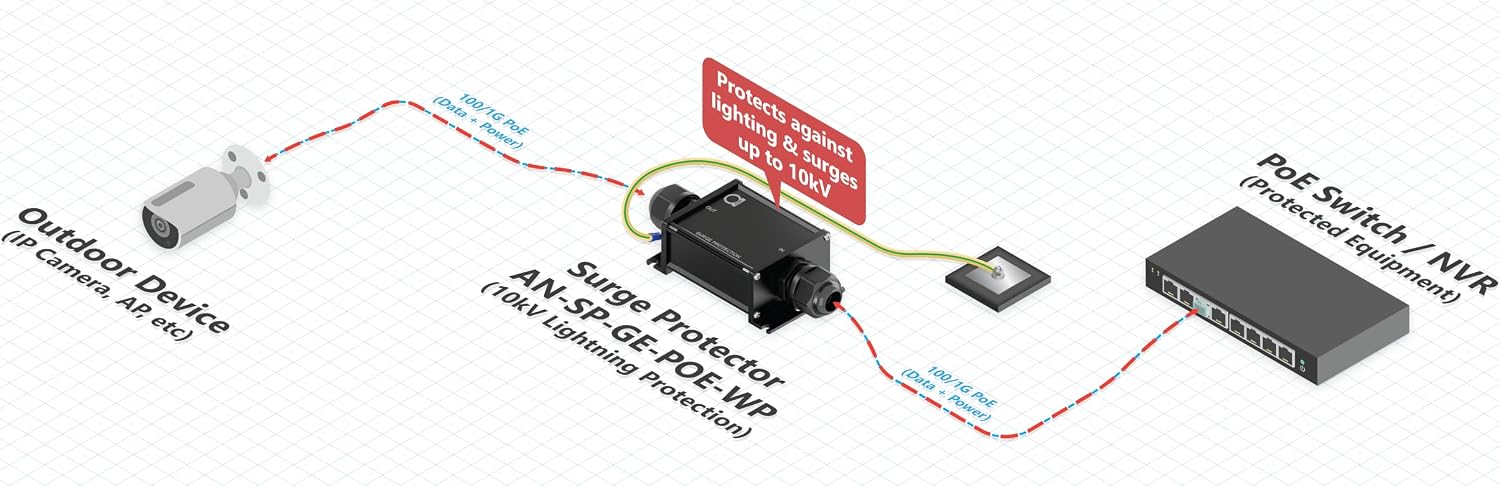

- Protects the equipment side — Install inline on an exposed Ethernet run. Connect the outdoor IP camera, access point, or field cable to the IN port, then connect the OUT port to the protected PoE switch, NVR, router, modem, server, or indoor network equipment.
- 10kV surge and lightning protection — Helps divert high-voltage transients away from connected network equipment through the grounding terminal. Rated for 5kA nominal discharge current, 10kA maximum discharge current, and more than 2,000 surge events at 0.5kA.
- IP67 waterproof aluminum housing — Rugged metal enclosure, silicone sealing ring, and waterproof RJ45 cable glands help resist rain, dust, and outdoor exposure. Operates from -40°C to +80°C (-40°F to +176°F) in up to 95% non-condensing humidity
- 10/100/1000 Mbps Ethernet compatibility — Supports 10 Mbps Ethernet, 100 Mbps Fast Ethernet, and 1000 Mbps Gigabit Ethernet links. Works with both 48V PoE and regular non-PoE network connections, with 250MHz bandwidth per pair and insertion loss of no more than 0.2dB.
- Grounding required for surge protection — Connect a suitable ground lead securely to the side grounding terminal so surge energy has a controlled path to earth. Clearly marked IN and OUT ports, wall-mount flanges, and four-piece waterproof gland assemblies support correct installation.
- All-pair RJ45 protection — Protects Ethernet conductors used for network data and 48V PoE, including pair groups 1/2, 3/6, 4/5, and 7/8. Compatible with PoE power carried over either pair set and with standard non-PoE Ethernet connections.
| ASIN | B0H69HHV49 |
|---|---|
| Brand | ADnet |
| Color | Black |
| Shape | Rectangle |
| Voltage | 48 |
| Item Weight | 282 Grams |
| Manufacturer | AD-net Technology., CO LTD (Taiwan) |
| Number of Ports | 2 |
| Number of Outlets | 1 |
| Compatible Devices | IP Cameras, NVRs, PoE Switches, Router, Wireless Access Points |
| Enclosure Material | Aluminum |
| Warranty Description | lifetime |
| Item Dimensions L x W | 4.45"L x 2.87"W |
| Surge Protection Rating | 10000 Volts |
| Recommended Uses For Product | Gates and Perimeter Security, IP Camera Installations, Industrial Network Equipment, Long Ethernet Cable Runs, Outdoor Surveillance Systems, Outdoor Wireless Access Points, PoE Network Protection, Warehouses and Parking Areas |
| Other Special Features of the Product | 10kV Surge Protection, 5kA Nominal / 10kA Maximum Discharge, All-Pair RJ45 Protection, IP67 Waterproof Housing, More Than 2,000 Surge Events |
